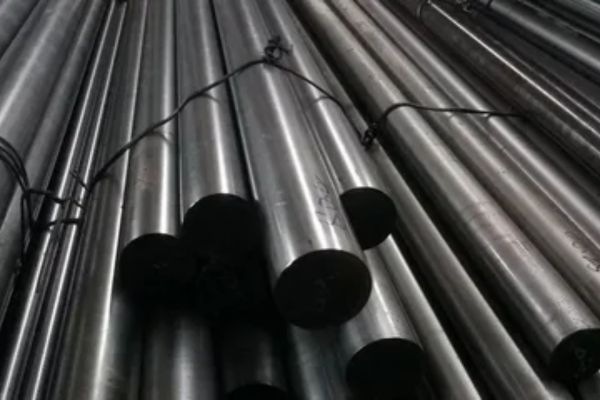

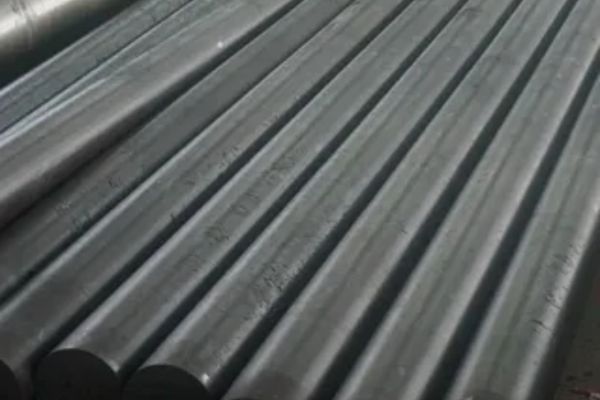

From the heart of Kinshasa, Yoane Steel stands as a trusted partner for industries across Congo, providing exceptional materials built for demanding applications. We take pride in supplying high-quality Carbon Steel EN-31 Bars, known for their remarkable toughness and ability to withstand significant wear and tear. Our commitment is to deliver not just a product, but a reliable solution that empowers your manufacturing processes and contributes to the strength and durability of your final creations.
Carbon Steel EN-31 is renowned for its excellent composition, which features a higher carbon content along with chromium. This specific blend is what gives the steel its notable hardness and strength. After undergoing proper heat treatment, it achieves impressive mechanical properties, including a very high tensile strength and exceptional resistance to abrasion. This makes the material exceptionally durable, capable of handling high-stress situations where other steels might fail or wear down too quickly.
| Grade | En31 |
|---|---|
| Specification | 100Cr6, AISI SAE E52100, 100Cr6, 2258, 100C6 |
| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |

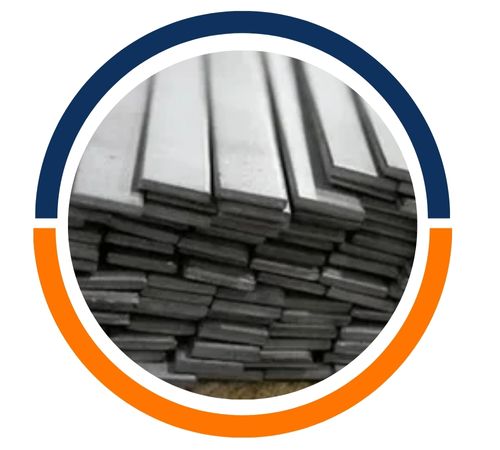

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

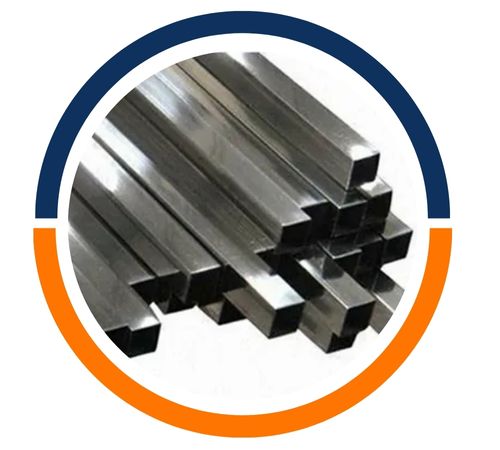

| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, peeled, slit rolled edge, hot rolled, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |

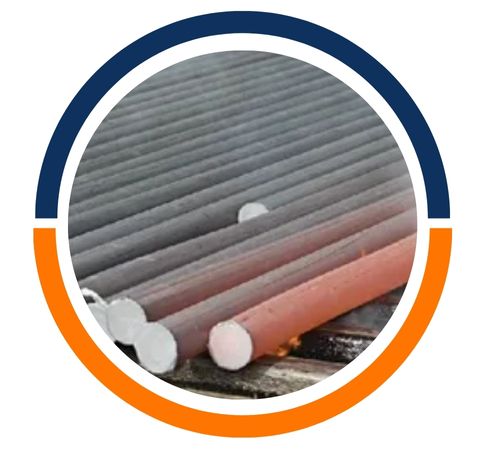

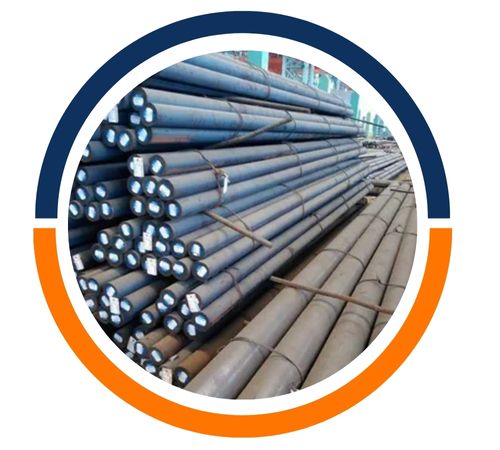

| Technique | en31 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |

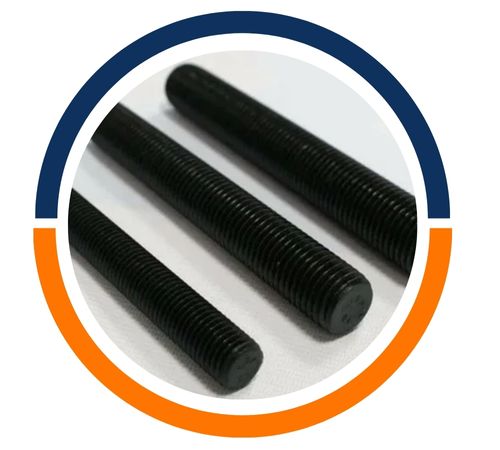

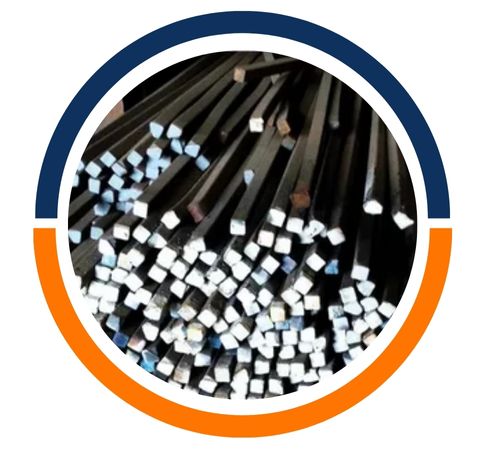

| Form | en31 Welding Rod, Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Our stockyad location for fast delivery across India | Surendranagar, Rajkot, Ranjangaon, Indore, Ahmedabad, Bhosari, Surat, Baroda, Chennai, Chakan, Hyderabad, Ahmednagar, Ajmer, Kolhapur, Thane, Belgaum, Kadi, Aurangabad, Pune, Hubli Mumbai, Nagpur, Jaipur, Nashik, Navi Mumbai |
| Carbon | 0.95 / 1.10 |
| Manganese | 0.40 / 0.70 |
| Silicon | 0.10 / 0.35 |
| Sulfur | Max 0.050 |
| Phosphorus | Max 0.040 |
| Chromium | 1.20 – 1.60 |
| Thermal Conductivity at °C | 20 | 350 | 700 |
| W/(m*K) | 44.5 | 45.0 | 46.0 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cut to size on request (tolerance +2/-0 mm). Standard lengths of en31 Bars 2000 mm up to 6000 mm available | |||
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
The unique strength and wear resistance of EN-31 Bars make them the ideal choice for a wide range of critical components. You will often find this steel used in the manufacturing of gears, shafts, spindles, and high-strength bolts—parts that are essential for heavy machinery and automotive applications. It’s also perfectly suited for creating durable tools, punches, and dies, where its ability to maintain an edge and resist deformation under pressure is absolutely vital for consistent performance and long service life.
Yoane Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Kinshasa, Congo.
