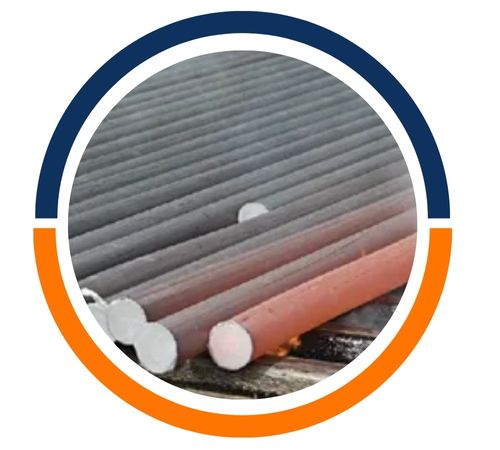

Steel is the backbone of modern industry, and in the heart of Kinshasa, Yoane Steel stands as a trusted partner for businesses across the Congo. We take pride in being a leading manufacturer and supplier, providing robust and reliable materials like our Carbon Steel EN-9 Bars. Known for its dependable strength and versatility, EN-9 is a cornerstone for countless projects, and we ensure a consistent, high-quality supply chain right here locally, empowering construction and manufacturing with materials you can count on.
Carbon Steel EN-9 is valued for its well-balanced composition and mechanical traits. It primarily consists of a moderate carbon content, which gives it a fine-grained structure that responds beautifully to heat treatment. This process allows it to achieve a notable combination of good tensile strength, admirable wear resistance, and decent hardness. Its ability to be hardened through quenching makes it a practical choice for engineers who need a material that can be tailored for toughness without becoming overly brittle in its finished state.
| Grade | 070M55 / EN-9 |
|---|---|
| Specification | BS 970 1991 |
| Round Bar Size | Diameter: 3-~800mm |

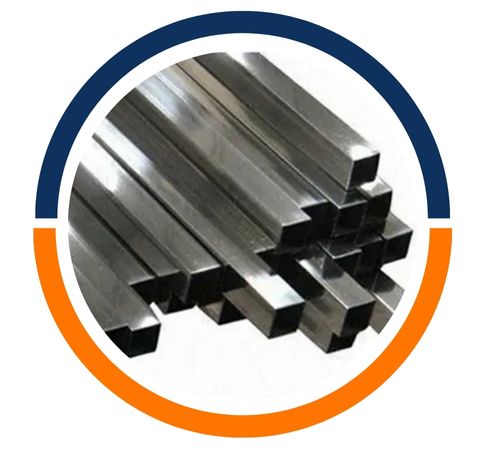

| Square Bar size | 4 to 100mm |

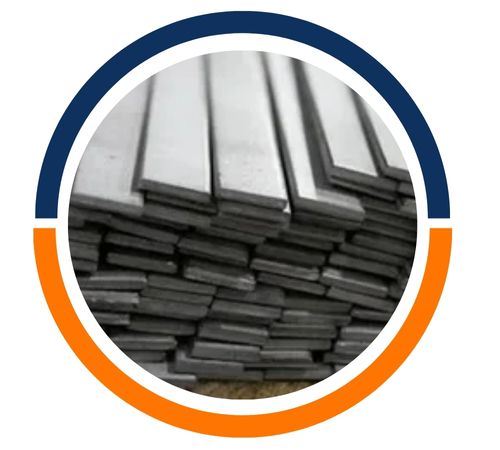

| Flat Bar Size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Hex Bar Size | 2-100mm A/F |

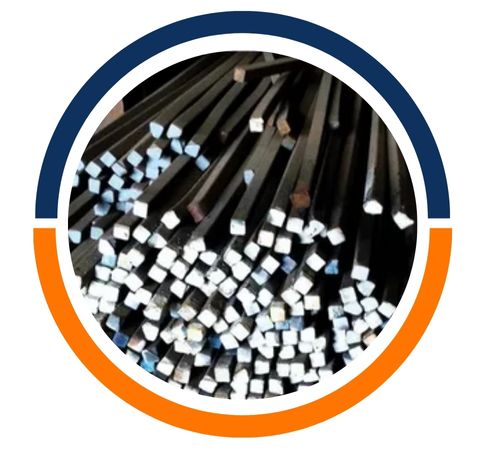

| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2″ to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, Rough Turned, Bright, peeled, hot rolled, hot rolled annealed, slit rolled edge, Polish, Grinding, Centreless Ground & Black |
| Tolerance | K9, K10, K11, K12, H8, H9, H10, H11, H12, H13, or as per clients’ requirements |
| Surface | Polished, Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Hairline |
| Condition | Hardened & Tempered, Annealed |

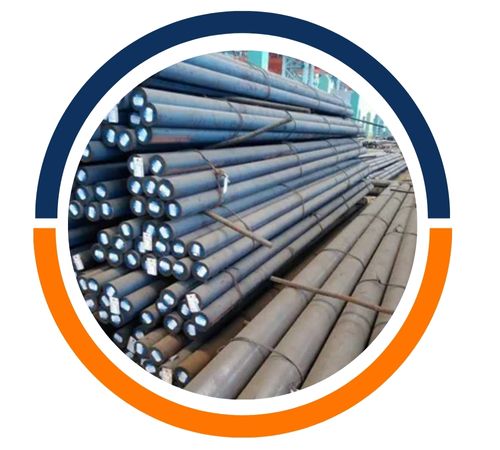

| Technique | en9 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rods |
| Processing | Bar cutting to 650mm |

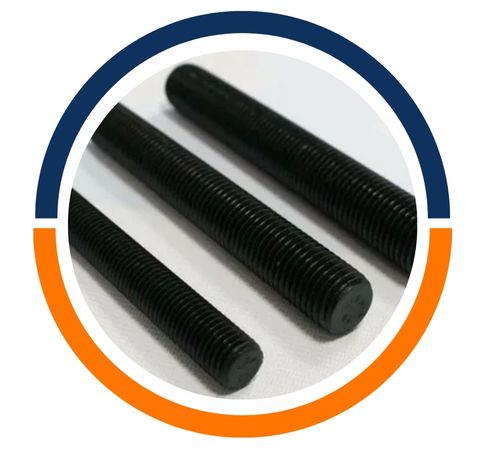

| Form | en9 Welding Rod, Round, Round Rod, Rings, Hollow, Rod, T-Bar, Channel Bar, Flat Bar, Square, Blocks, Precision Ground Bar, Triangle, Rectangle, Hex (A/F), Threaded, Ingot, I/H Bar, Half Round Bar, Profiles, Billet, Forging etc. |
| Grade | Cr | C | Ni | Si | S | Mn | P | Mo |
| EN – 9 | – | .50 – .60 | – | .05 – .35 | .040 MAX | .50 – .80 | .040 MAX | – |
| Heat Treatment | Condition Tons/SQ.inch | Tensile Stress RE MPA | RP0.2 MPA | A min on 5.65so | Impac | Hardness HB | Limited Ruling Section mm | |
| IZODFT.L.b | KCV Joules | |||||||
| Normalise | 45 | 700 | – | 12 | – | – | 201-255 | 63 |
| 39 | 600 | – | 13 | – | – | 170/223 | 250 | |
| R | 45/55 | 700/850 | 385 | 14 | – | – | 201/277 | 100 |
| S | 50/60 | 775/925 | 450 | 14 | – | – | 223/277 | 63 |
| T | 55/65 | 850/1000 | 555 | 12 | – | – | 248/302 | 19 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Size (ins) | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 1 | 1 1/8 | 1 1/4 | 1 3/8 | 1 1/2 | 1 3/4 | 1 7/8 | 2 | 2 1/8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 3 | 3 |
| Size (mm) | 32 | 40 | 45 | 50 | 55 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 110 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 120 | 125 | 130 | 140 | 150 | 160 | 180 | 190 | 200 | 220 | 280 |
You’ll find Carbon Steel EN-9 Bars hard at work in a remarkable range of applications. They are commonly machined into essential components like shafts, pins, and gears for machinery, where their strength is crucial. The construction industry relies on them for high-strength fasteners and parts requiring reliable durability. Beyond that, they are a popular choice for a variety of hand tools, agricultural equipment, and automotive parts, proving their worth wherever a dependable, hard-wearing steel is needed to get the job done right.
