In the heart of Kinshasa, Yoane Steel stands as a cornerstone for industrial progress, dedicating itself to supplying robust and reliable materials for the region’s growing infrastructure. We take pride in being your trusted local source for critical components like Alloy Steel F11 Flanges, delivering not just a product, but a commitment to quality and service that empowers projects across Congo. Our presence ensures that strength and durability are always within reach for the businesses driving our nation forward.
The strength of Alloy Steel F11 Flanges comes from a carefully balanced composition, primarily chromium and molybdenum, which gives them a remarkable resilience against corrosion and high temperatures. This alloy mix results in excellent tensile strength and impressive yield strength, allowing these flanges to maintain their integrity and sealing capabilities even under significant pressure and stress, making them a dependable choice for demanding environments where failure is not an option.
| Specifications | ASTM A182 Alloy Steel F11 Flanges |
|---|---|
| ASME B16.5 Alloy Steel F11 Flanges size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Alloy Steel F11 Flanges Standards | ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, |
| Alloy Steel F11 Flanges Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Alloy Steel F11 Flanges Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Alloy Steel F11 Flanges Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Alloy Steel F11 Flanges Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Alloy Steel F11 Flanges Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |

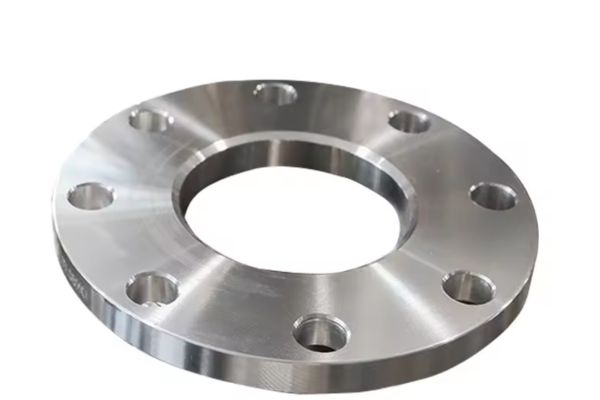

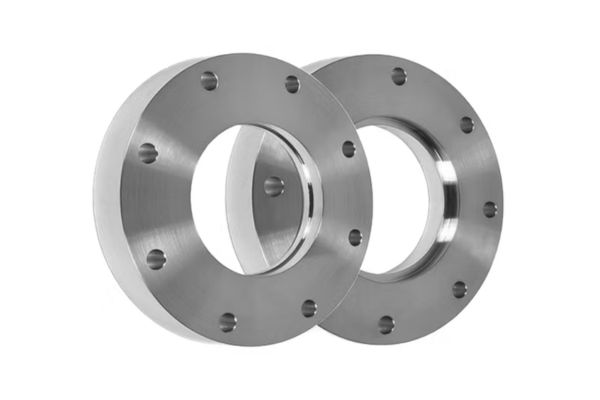

| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Alloy Steel F11 Pipe Flanges Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique |
|

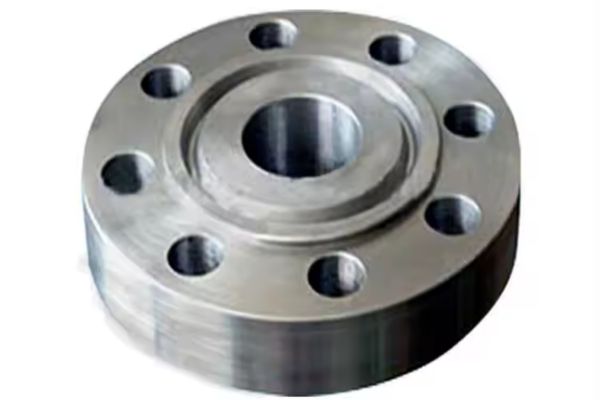

| Connect Type/ Flange Face Type | Small Male-Female (SMF), Small Tongue & Groove, Large Tongue & Groove,Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF) |
| Most common types of Alloy Steel F11 Flanges |
|

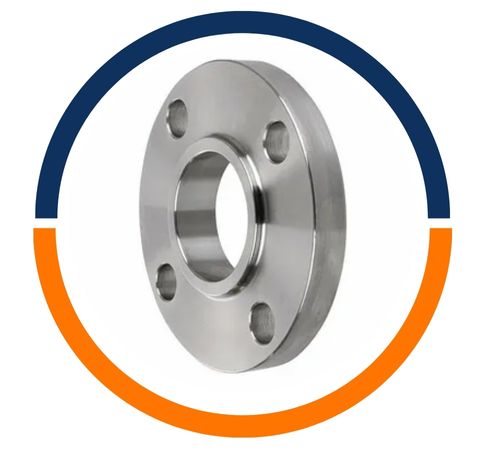

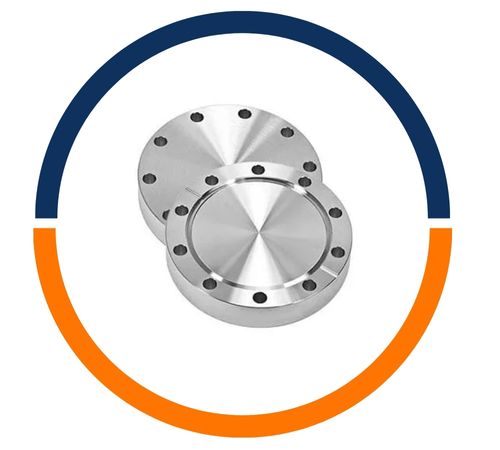

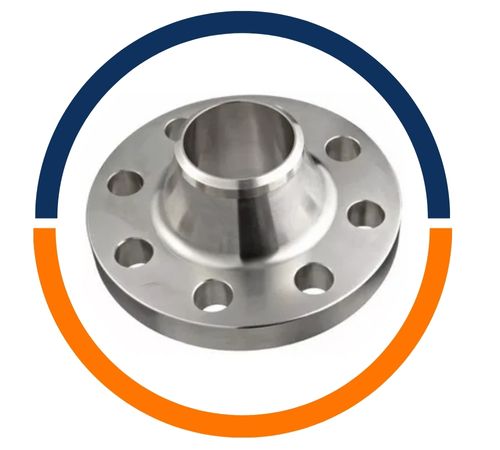

| Special design | As per your drawing AS, ANSI, BS, DIN and JIS Alloy Steel F11 Flanges Threaded Flanges, Socketweld Flanges, Slip-On Flanges, Blind Flanges, Weld Neck Flanges |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Specialized manufacturer of |
|
| Alloy Steel F11 Flanges Standard | ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange, ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE,
|
| Key markets and industries for Alloy Steel F11 Flanges |
|
| Export to | Thailand, Peru, Iran, Korea, Singapore, Ireland, Oman, Dubai, Ukraine, Brazil, India, Canada, Egypt, Indonesia, USA, Spain, Saudi Arabia, etc |
| Alloy Steel F11 Flanges Application |
|
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Grade | C | Mn | P | S | Si | Ni | Ch | Mo | Cb |
|---|---|---|---|---|---|---|---|---|---|
| F11 | 0.15 | 0.30-0.60 | 0.030 | 0.030 | 0.50-1.00 | – | 1.00-1.50 | 0.44-0.65 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| F11 | 415 | 205 | 20 | – | 121-174 |
| STANDARD | UNS | WERKSTOFF NR. |
|---|---|---|
| Alloy Steel F11 | K11597/K11572 | 1.7335 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
|
Pipe Normal Diam. |
O.D. Flange |
Thk. Of Flange Min |
Diam.
of
Hub |
Diameter of Raised Face |
Length Hub.Y |
Thread Length |
Diam.
of Bolt
Circle |
Diam.
of Bolt
Holes |
Number
of Bolts |
Diam. of
Bolts
(inch) |
KG |
LB |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
inch |
dn |
O |
C |
X |
G |
Y |
T |
BC |
BH |
BN |
BD |
||
|
1/2″ |
15 |
89.00 |
11.20 |
30.20 |
35.10 |
15.70 |
15.70 |
60.50 |
15.80 |
4 |
1/2″ |
0.4 |
0.9 |
|
3/4″ |
20 |
98.50 |
12.70 |
38.10 |
42.90 |
15.70 |
15.70 |
69.90 |
15.80 |
4 |
1/2″ |
0.7 |
1.5 |
|
1″ |
25 |
108.00 |
14.20 |
49.30 |
50.80 |
17.50 |
17.50 |
79.30 |
15.80 |
4 |
1/2″ |
0.8 |
1.8 |
|
1-1/4″ |
32 |
117.50 |
15.70 |
58.70 |
63.50 |
20.60 |
20.60 |
88.90 |
15.80 |
4 |
1/2″ |
1.2 |
2.6 |
|
1-1/2″ |
40 |
127.00 |
17.50 |
65.00 |
73.20 |
22.40 |
22.40 |
98.60 |
15.80 |
4 |
1/2″ |
1.5 |
3.3 |
|
2″ |
50 |
152.50 |
19.10 |
77.70 |
91.90 |
25.40 |
25.40 |
120.70 |
19.10 |
4 |
5/8″ |
2.3 |
5.1 |
|
2-1/2″ |
65 |
178.00 |
22.40 |
90.40 |
104.60 |
28.40 |
28.40 |
139.70 |
19.10 |
4 |
5/8″ |
3.7 |
8.1 |
|
3″ |
80 |
190.50 |
23.90 |
108.00 |
127.00 |
30.20 |
30.20 |
152.40 |
19.10 |
4 |
5/8″ |
4.1 |
9 |
|
3-1/2″ |
90 |
216.00 |
23.90 |
122.20 |
139.70 |
31.80 |
31.80 |
177.80 |
19.10 |
8 |
5/8″ |
5.1 |
11.2 |
|
4″ |
100 |
228.50 |
23.90 |
134.90 |
157.20 |
33.30 |
33.30 |
190.50 |
19.10 |
8 |
5/8″ |
5.9 |
13 |
|
5″ |
125 |
254.00 |
23.90 |
163.60 |
185.70 |
36.60 |
36.60 |
215.90 |
22.40 |
8 |
3/4″ |
7 |
15.4 |
|
6″ |
150 |
279.50 |
25.40 |
192.00 |
215.90 |
39.60 |
39.60 |
241.30 |
22.40 |
8 |
3/4″ |
8.4 |
18.5 |
|
8″ |
200 |
343.00 |
28.40 |
246.10 |
269.70 |
44.50 |
44.50 |
298.50 |
22.40 |
8 |
3/4″ |
13 |
28.6 |
|
10″ |
250 |
406.50 |
30.20 |
304.80 |
323.90 |
49.30 |
49.30 |
362.00 |
25.40 |
12 |
7/8″ |
18 |
39.5 |
|
12″ |
300 |
482.50 |
31.80 |
365.30 |
381.00 |
55.60 |
55.60 |
431.80 |
25.40 |
12 |
7/8″ |
29 |
64 |
|
14″ |
350 |
533.50 |
35.10 |
400.10 |
412.80 |
57.20 |
57.20 |
476.30 |
28.50 |
12 |
1″ |
39 |
86 |
|
16″ |
400 |
597.00 |
36.60 |
457.20 |
469.90 |
63.50 |
63.50 |
539.80 |
28.50 |
16 |
1″ |
47 |
103 |
|
18″ |
450 |
635.00 |
39.60 |
505.00 |
533.40 |
68.30 |
68.30 |
577.90 |
31.80 |
16 |
1 1/8″ |
57 |
126 |
|
20″ |
500 |
698.50 |
42.90 |
558.80 |
584.20 |
73.20 |
73.20 |
635.00 |
31.80 |
20 |
1 1/8″ |
76 |
167 |
|
24″ |
600 |
813.00 |
47.80 |
663.40 |
692.20 |
82.60 |
82.60 |
749.30 |
35.10 |
20 |
1 1/4″ |
97 |
214 |
Yoane Steel is a top manufacturer and supplier of high-quality Alloy Steel F11 Flanges products in Kinshasa, Congo. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
These flanges are truly the workhorses of heavy industry, finding their purpose in the demanding world of power generation plants and sophisticated petrochemical refineries. You will find them creating secure connections in high-temperature piping systems, handling steam, oil, and other aggressive media with proven reliability. Their toughness also makes them ideal for various industrial processing equipment, ensuring safe and efficient operations in some of the most challenging applications.
