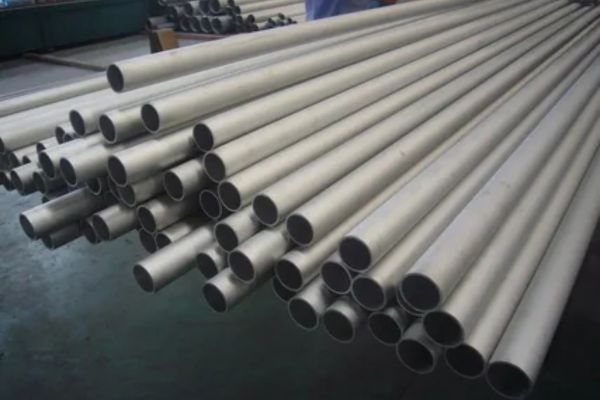

In the dynamic industrial landscape of Kinshasa, Yoane Steel has carved out a vital role as a trusted manufacturer and supplier, bringing advanced metallurgical solutions to the heart of Congo. We understand the demanding requirements of modern power and processing industries, which is why our focus on Alloy Steel T92 Tubing is so central to our mission. We are committed to providing materials that not only meet but exceed expectations, ensuring our clients can build and operate with unwavering confidence and reliability.
What sets our T92 tubing apart is its sophisticated composition, a precise balance of chromium, molybdenum, and tungsten, with a crucial addition of vanadium and niobium. This alloy recipe gives the material remarkable mechanical properties, including exceptional strength and durability even when faced with extreme temperatures and high-pressure environments. It resists creep and oxidation far better than many alternatives, making it a fundamentally tougher and more reliable choice for the most challenging applications.
| SA213 T92 Tube Standard | ASTM A213 T92, SA213 T92 (with IBR Test Certificate) |
|---|---|
| SA213 T92 Tube Specifications | ASTM A213 & ASTM A209 (T1 , Ta, T1b) BS/3059/90/PartII/620 & 622 DIN/17175/13CrMo44 DIN/17175/10CrMo910 DIN/17175/15Mo3 |
| Size | 6.35 mm OD to 101.6 mm OD |
| Sch. & Swg. | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg., 3.6 mm Thk |
| SA213 T92 Tube Thickness | 3-12mm |
| SA213 T92 Tube Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
| SA213 T92 Tube Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| Craft | Cold rolled and Cold drawn |
| SA213 T92 Tube Type | Seamless / ERW / Welded / Fabricated |
| SA213 T92 Tube available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| SA213 T92 Tube Length | Standard Double & In Cut length also. |
| SA213 T92 Tube End | Plain End, Beveled End, Treaded |
| Specialized in | ASME SA213 T92 Boiler Tube, SA213 T92 Heater Tube, SA213 T92 Heat Exchanger Tube |
| SA213 gr T92 Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| SA213 grade T92 Tube Application | Seamless Ferritic Alloy Steel Tube for High-Temperature Service |
| C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % | V, % | N, % | Ni, % | Al, % | Nb, % | W, % | B, % |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.07-0.13 | 0.3-0.6 | 0.02 max | 0.01 max | 0.5 max | 8.5-9.5 | 0.3-0.6 | 0.15-0.25 | 0.03-0.07 | 0.4 max | 0.04 max | 0.04-0.09 | 1.5-2.0 | 0.001-0.006 |
| Grade | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
|---|---|---|---|---|
| ASTM A213 T92 Tubing | 585 min | 415 min | 20 min | 250 max |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |
Jaxon Steel is a leading manufacturer and distributor of high-quality Alloy Steel T92 Tubing in Kinshasa, Congo. We offer top-grade steel materials and a broad range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory includes Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Committed to timely delivery and exceptional customer service, we source only the finest raw materials to ensure superior performance in industrial applications with demanding specifications. Contact us today for all your Alloy Steel T92 Tubing needs!
This high-performance capability makes our Alloy Steel T92 tubing indispensable in critical sectors. It is the material of choice for superheater and reheater tubes in advanced power generation boilers, where it reliably handles intense heat and pressure. You’ll also find it essential in petroleum refineries and chemical processing plants, particularly in furnace setups and piping systems that transport aggressive media. Essentially, wherever there’s a need for long-lasting strength under severe thermal stress, T92 provides a proven and dependable solution.
Yoane Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Kinshasa, Congo.
