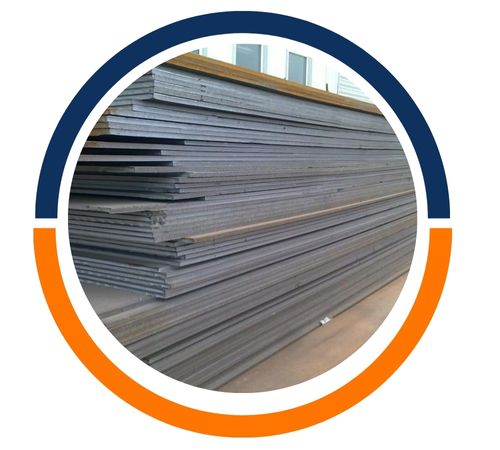

Based in the vibrant industrial landscape of Kinshasa, Congo, Yoane Steel stands as a trusted partner for robust and reliable steel solutions. We take pride in manufacturing and supplying high-quality IS 2062 E410 plates, a product engineered for strength and dependability. Our commitment is to provide Congolese industries with materials that meet rigorous standards, ensuring your projects are built on a foundation of excellence. We understand the demands of the local market and deliver plates that consistently perform, backed by our deep-rooted expertise and dedication to customer success.
The E410 grade under the IS 2062 standard is formulated with a specific composition to achieve excellent mechanical properties. It offers a minimum yield strength of 410 MPa, which is the point where it begins to deform permanently, providing a significant safety margin. This strength is complemented by good ductility and toughness, allowing the plates to be formed and welded with relative ease. This combination of high strength and workability makes it a versatile and practical choice for a wide range of demanding structural applications.
| Item | Hot Rolled Medium and High Tensile Structural Steel – IS 2062 E410 |
|---|---|
| Thickness | 5mm-150mm |
| Width | 1000mm-4500mm |
| Length | 3000mm-18000mm |
| Grade | Quality | C | Mn | S | P | Si | Carbon Equivalent (CE), Max |
| E 410 | A BR B0 | 0.20 | 1.60 | 0.045 | 0.045 | 0.45 | 0.50 |
| C | 0.20 | 1.60 | 0.040 | 0.040 | 0.45 | 0.50 |
| Grade | Tensile strength N/mm2 | Yield strength N/mm2 | Elongation (%) | ||
|---|---|---|---|---|---|
| ＜20mm | 20mm-40mm | ＞40mm | |||
| IS 2062 E410 | 540 | 410 | 390 | 380 | 20 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yoane Steel is one of the most prominent manufacturers and suppliers of superior quality IS 2062 E410 Plates in Kinshasa, Congo. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.Â
| Thickness | Length x Width | Mass per Sq m | Thickness | Length x Width | Mass per Sq m |
|---|---|---|---|---|---|
| mm | mm | Kg/m2 | mm | mm | Kg/m2 |
| 3 | 2500 x 1250 mm | 23.055 | 30.000 | 2500 x 1250 | 235.050 Kg/m2 |
| 3 | 3000 x 1500 mm | 23.055 | 30.000 | 3000 x 1500 | 235.050 Kg/m2 |
| 3 | 2000 x 1000 mm | 23.055 | 30.000 | 2000 x 1000 | 235.050 Kg/m2 |
| 3 | 3660 x 1830 mm | 23.055 | 30.000 | 4000 x 2000 | 235.050 Kg/m2 |
| 4 | 2000 x 1000 mm | 31.040 | 30.000 | 5000 x 2500 | 235.050 Kg/m2 |
| 3 | 4000 x 2000 mm | 23.055 | 30.000 | 5000 x 1250 | 235.050 Kg/m2 |
| 4 | 2500 x 1250 mm | 31.040 | 30.000 | 6000 x 2500 | 235.050 Kg/m2 |
| 4 | 3660 x 1830 mm | 31.040 | 32.000 | 2000 x 1000 | 251.020 Kg/m2 |
| 5 | 2000 x 1000 mm | 39.025 | 32.000 | 2500 x 1250 | 251.020 Kg/m2 |
| 5 | 4000 x 2000 mm | 39.025 | 35.000 | 4000 x 2000 | 274.075 Kg/m2 |
| 4 | 3000 x 1500 mm | 31.040 | 30.000 | 10000 x 2500 | 235.050 Kg/m2 |
| 5 | 2500 x 1250 mm | 39.025 | 32.000 | 3000 x 1500 | 251.020 Kg/m2 |
| 5 | 3660 x 1830 mm | 39.025 | 32.000 | 5000 x 2500 | 251.020 Kg/m2 |
| 5 | 4000 x 1750 mm | 39.025 | 35.000 | 2500 x 1250 | 274.075 Kg/m2 |
| 5 | 3000 x 1500 mm | 39.025 | 32.000 | 4000 x 2000 | 251.020 Kg/m2 |
| 5 | 6000 x 2000 mm | 39.025 | 40.000 | 2000 x 1000 | 314.000 Kg/m2 |
| 6 | 2500 x 1250 mm | 47.010 | 40.000 | 2500 x 1250 | 314.000 Kg/m2 |
| 6 | 3000 x 1500 mm | 47.010 | 40.000 | 3000 x 1500 | 314.000 Kg/m2 |
| 5 | 4000 x 1830 mm | 39.025 | 35.000 | 3000 x 1500 | 274.075 Kg/m2 |
| 6 | 3660 x 1830 mm | 47.010 | 40.000 | 4000 x 2000 | 314.000 Kg/m2 |
| 6 | 4000 x 1750 mm | 47.010 | 40.000 | 5000 x 2500 | 314.000 Kg/m2 |
| 6 | 3000 x 1525 mm | 47.010 | 40.000 | 4000 x 1750 | 314.000 Kg/m2 |
| 6 | 4000 x 1830 mm | 47.010 | 40.000 | 6000 x 2000 | 314.000 Kg/m2 |
| 6 | 6000 x 1500 mm | 47.010 | 45.000 | 2000 x 1000 | 353.025 Kg/m2 |
| 6 | 6000 x 1830 mm | 47.010 | 45.000 | 2500 x 1250 | 353.025 Kg/m2 |
| 6 | 4000 x 2000 mm | 47.010 | 40.000 | 7500 x 2500 | 314.000 Kg/m2 |
| 6 | 6000 x 2000 mm | 47.010 | 45.000 | 2500 x 1500 | 353.025 Kg/m2 |
| 6 | 8000 x 2000 | 47.010 | 45.000 | 4000 x 2000 | 353.025 |
| 6 | 8000 x 2500 | 47.010 | 45.000 | 5000 x 2500 | 353.025 |
| 6 | 6000 x 2500 mm | 47.010 | 45.000 | 3000 x 1500 | 353.025 Kg/m2 |
| 8 | 2000 x 1000 | 62.080 | 50.000 | 2000 x 1000 | 392.050 |
| 8 | 3000 x 1500 | 62.080 | 50.000 | 3000 x 1500 | 392.050 |
| 8 | 3660 x 1830 | 62.080 | 50.000 | 4000 x 2000 | 392.050 |
| 8 | 4000 x 2000 | 62.080 | 50.000 | 5000 x 2500 | 392.050 |
| 8 | 2500 x 1250 | 62.080 | 50.000 | 2500 x 1250 | 392.050 |
| 8 | 5000 x 2500 | 62.080 | 50.000 | 6000 x 2000 | 392.050 |
| 8 | 6000 x 2000 | 62.080 | 60.000 | 2000 x 1000 | 471.000 |
| 8 | 6000 x 1500 | 62.080 | 50.000 | 8000 x 2500 | 392.050 |
| 8 | 8000 x 2000 | 62.080 | 60.000 | 2500 x 1250 | 471.000 |
| 10 | 2500 x 1250 | 78.050 | 60.000 | 4000 x 2000 | 471.000 |
| 10 | 3000 x 1500 | 78.050 | 60.000 | 5000 x 2500 | 471.000 |
| 10 | 2000 x 1000 | 78.050 | 60.000 | 3000 x 1500 | 471.000 |
| 10 | 4000 x 1750 | 78.050 | 65.000 | 2000 x 1000 | 510.025 |
| 10 | 6000 x 1500 | 78.050 | 65.000 | 3000 x 1500 | 510.025 |
| 10 | 6000 x 2000 | 78.050 | 65.000 | 4000 x 2000 | 510.025 |
| 10 | 6000 x 2500 | 78.050 | 65.000 | 5000 x 2500 | 510.025 |
| 10 | 5000 x 2500 | 78.050 | 65.000 | 2500 x 1250 | 510.025 |
| 10 | 10000 x 2000 | 78.050 | 70.000 | 2000 x 1000 | 549.05 |
| 10 | 10000 x 2500 | 78.050 | 70.000 | 2500 x 1250 | 549.05 |
| 12 | 4000 x 2000 | 94.020 | 70.000 | 4000 x 2000 | 549.05 |
| 12 | 6000 x 2000 | 94.020 | 70.000 | 5000 x 2500 | 549.05 |
| 12 | 6000 x 2500 | 94.020 | 75.000 | 2000 x 1000 | 588.075 |
| 12 | 2000 x 1000 | 94.020 | 70.000 | 3000 x 1500 | 549.05 |
| 12.05 | 2000 x 1000 | 98.013 | 75.000 | 2500 x 1250 | 588.075 |
| 12.05 | 2500 x 1250 | 98.013 | 75.000 | 3000 x 1500 | 588.075 |
| 12.05 | 3050 x 1525 | 98.013 | 75.000 | 5000 x 2500 | 588.075 |
| 12.05 | 4000 x 1750 | 98.013 | 80.000 | 2000 x 1000 | 628.000 |
| 12.05 | 4000 x 2000 | 98.013 | 80.000 | 2500 x 1250 | 628.000 |
| 12.05 | 5000 x 2500 | 98.013 | 80.000 | 3000 x 1500 | 628.000 |
| 12.05 | 6000 x 1500 | 98.013 | 80.000 | 4000 x 2000 | 628.000 |
| 12.05 | 6000 x 2000 | 98.013 | 90.000 | 2000 x 1000 | 706.05 |
| 12.05 | 3000 x 1500 | 98.013 | 75.000 | 4000 x 2000 | 588.075 |
| 12.05 | 6000 x 2500 | 98.013 | 90.000 | 2500 x 1250 | 706.05 |
| 15 | 2500 x 1250 | 117.075 | 90.000 | 4000 x 2000 | 706.05 |
| 15 | 3000 x 1500 | 117.075 | 90.000 | 5000 x 2000 | 706.05 |
| 15 | 2000 x 1000 | 117.075 | 90.000 | 3000 x 1500 | 706.05 |
| 20 | 2500 x 1250 | 157.000 | 110.000 | 2000 x 1000 | 863.050 |
| 15 | 4000 x 1750 | 117.075 | 100.000 | 2000 x 1000 | 785.000 |
| 15 | 4000 x 2500 | 117.075 | 100.000 | 3000 x 1500 | 785.000 |
| 15 | 5000 x 2500 | 117.075 | 100.000 | 4000 x 2000 | 785.000 |
| 15 | 4000 x 2000 | 117.075 | 100.000 | 2500 x 1250 | 785.000 |
| 15 | 6000 x 2500 | 117.075 | 100.000 | 5000 x 2500 | 785.000 |
| 20 | 3000 x 1500 | 157.000 | 110.000 | 2500 x 1250 | 863.050 |
| weight | Thickness |
|---|---|
| （kg/m²） | （mm） |
| 2.75 kg/m² | 0.35 mm |
| 1.96 kg/m² | 0.25 mm |
| 2.36 kg/m² | 0.3 mm |
| 1.57 kg/m² | 0.2 mm |
| 7.85 kg/m² | 1 mm |
| 3.53 kg/m² | 0.45 mm |
| 4.32 kg/m² | 0.55 mm |
| 3.14 kg/m² | 0.4 mm |
| 3.93 kg/m² | 0.5 mm |
| 4.71 kg/m² | 0.6 mm |
| 5.1 kg/m² | 0.65 mm |
| 8.64 kg/m² | 1.1 mm |
| 5.89 kg/m² | 0.75 mm |
| 5.5 kg/m² | 0.7 mm |
| 7.07 kg/m² | 0.9 mm |
| 6.28 kg/m² | 0.8 mm |
These plates are essential in constructing the backbone of modern infrastructure. You’ll find them in the frames of industrial buildings, large warehouses, and bridges where their high strength is crucial. They are also widely used in the fabrication of heavy machinery, mining equipment, and structural components for the transportation sector. Essentially, wherever a project calls for a material that can handle substantial stress and load without failing, IS 2062 E410 plates provide the necessary resilience and durability to ensure long-term structural integrity and safety.
Yoane Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Kinshasa, Congo.
