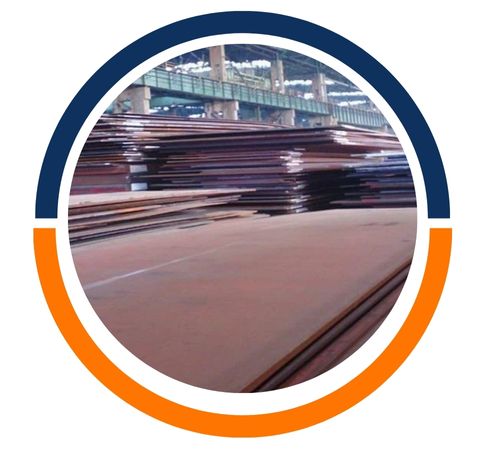

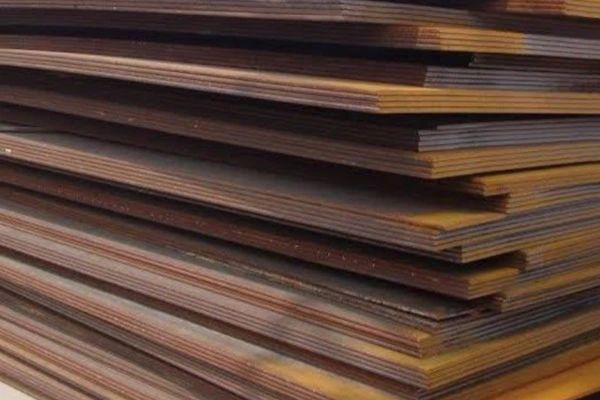

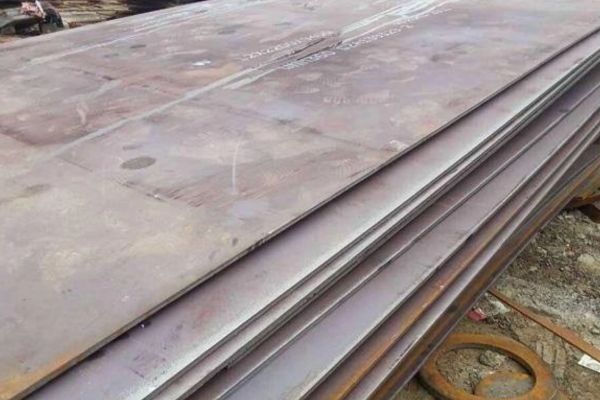

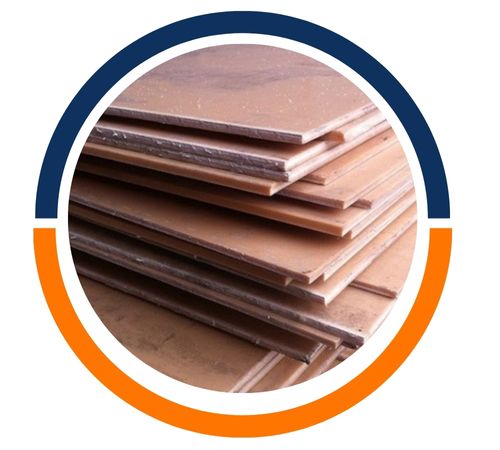

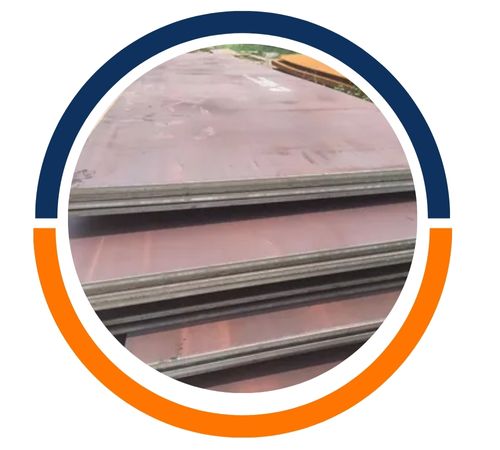

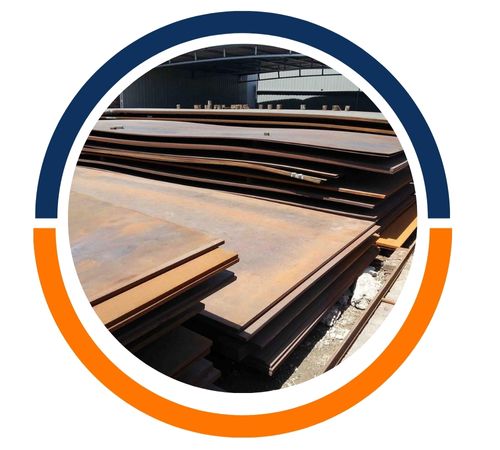

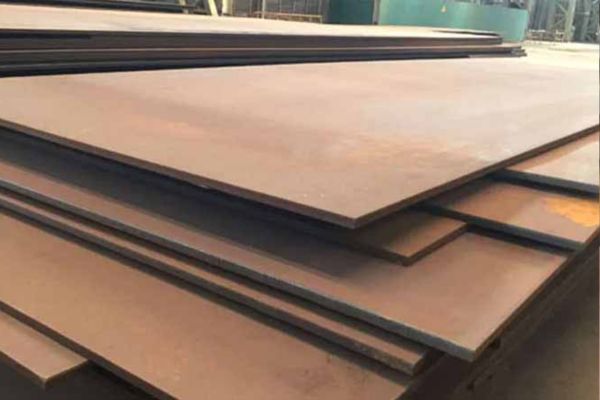

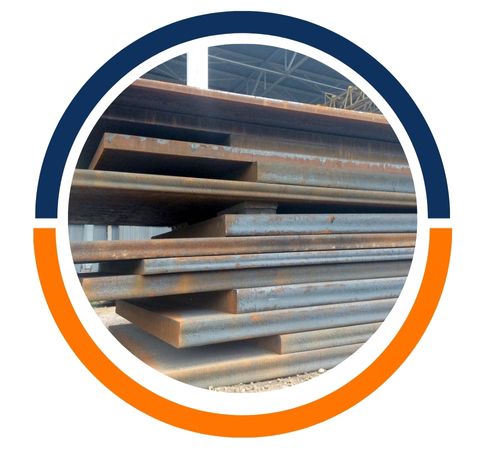

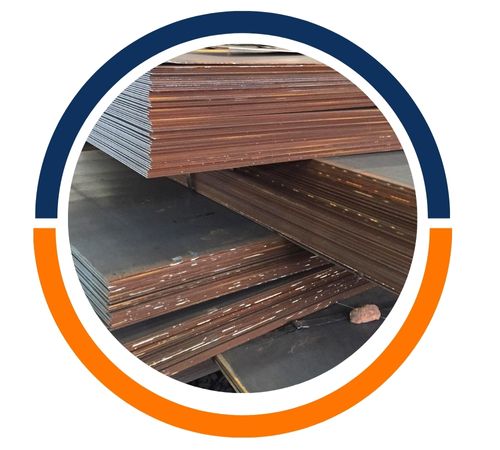

Here in the heart of Kinshasa, Yoane Steel proudly serves as your trusted local source for high-performance materials. We understand the demanding conditions faced by industries across the Congo, which is why we supply the exceptional NICRODUR 500 sheet and plate. This premium abrasion-resistant steel is engineered to withstand intense wear and tear, offering a robust solution that boosts the longevity and productivity of your most critical equipment and machinery.
The strength of NICRODUR 500 comes from a carefully balanced composition, primarily a high-carbon steel that is heat-treated to achieve its remarkable properties. It delivers an exceptional hardness that directly translates into superior resistance against abrasive materials. This toughness means it can take a significant pounding, maintaining its structural integrity under heavy impacts, all while being workable enough for essential fabrication tasks in your workshop.
Item: NICRODUR 500
Thickness : 5mm to 150mm
Length : 6,000mm to 12,000mm
Width : 1,500mm to 2,500mm
Heat Treatment: N, Q+T
Surface Point : EP, PE, HDP, SMP, PVDF
| Plate Thickness [mm] | C max | Si max | Mn max | S max | P max | Cr max | Ni max | Mo max | B max | CEV max | |
| 8 – 25 | 0,28 | 1,0 | 1,5 | 0,002 | 0,012 | 1,0 | 0,5 | 0,5 | 0,005 | 0,61 | |
| (20) – 40 | 0,32 | 1,0 | 1,5 | 0,002 | 0,012 | 1,1 | 0,5 | 0,5 | 0,005 | 0,71 | |
| (40) – 60 | 0,34 | 1,0 | 1,5 | 0,002 | 0,012 | 1,2 | 0,7 | 0,5 | 0,005 | 0,76 | |
| (60) – 80 | 0,40 | 1,0 | 1,5 | 0,002 | 0,012 | 1,5 | 1,0 | 0,5 | 0,005 | 0,81 |
| Yield strength(minimal), Re [MPa] | Tensile strength, Rm [MPa] | Elongation (minimal), A5 [%] | |
| NICRODUR 500 | 1500 | 1800 | 9 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | Â |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
The uses for this durable material are extensive across key sectors. It’s ideal for lining dump truck beds, protecting them from heavy, sharp rocks in mining operations. In construction, it reinforces concrete mixer drums and strengthens bulldozer blades. Processing plants use it for hoppers, chutes, and crusher liners that are constantly worn down by raw materials. By choosing NICRODUR 500, you are investing in reduced downtime and lower long-term costs for your business.
