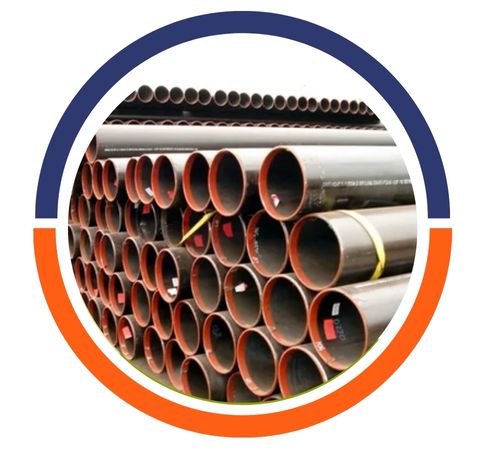

Based in the heart of Kinshasa, Yoane Steel stands as a trusted partner for industrial progress throughout the Congo. We specialize in supplying robust and reliable materials engineered for the demanding energy sector, including our high-grade Carbon Steel API X46 5L PSL 1 Pipes. Our commitment is to fuel local and regional development by providing products that meet rigorous international standards, ensuring that every project we supply is built on a foundation of quality, durability, and unwavering performance.
These pipes are crafted to a precise chemical composition, primarily iron and carbon with controlled levels of manganese, to achieve their specific strength. The API X46 designation guarantees a minimum yield strength of 46,000 psi, offering an excellent balance of durability and formability for high-pressure environments. As a PSL 1 product, they deliver reliable performance for a wide array of pipeline duties, combining proven toughness with the ductility needed for secure welding and installation in the field.
| Grade of material | X46 / L320 (N, M, Q, R) |
| API 5L Gr X46 ERW and HFW | 1/2” NB – 24” NB |
| X46 LSAW / DSAW | 16’OD TO 54″ OD (8 MM TO 50 MM THK) |
| Standard | ISO 3183 L320/ API 5L X46 |
| API 5L X46 Seamless Pipe (OD) | 21.3 – 660mm ( Inch 1/2” – 26”) |
| PSL Level | |
| X46 Steel SAW | 16″ – 100″ NB |
| Surface Treatment | Pickling Galvanising Forging Capping Pre turning Powder Coating Degreasing Washing Copper Plating Cementing Chromium – Plating Brushing Nickle – Plating Roller Polishing Grinding Honing Shot Blasting Skiving PE Covering Roller Burnishing |
| Manufacturing process | Welded, Extrusion, Submerged Arc Welded (SAW), Seamless, Electro Fusion Seam Welded (EFSW), Longitudinally Submerged Arc Welded (LSAW), Cold Drawn Seamless (CDS), Hot Finish Seamless (HFS), Horizontal Submerged Arc Welded (HSAW), Electric Resistance Welded (ERW) |
| API 5L X46 PSL1 Pipe end | Squared Ends, Thread Cutting, Socket, Flanged Ends, Beveled End (BE), Cut Grooves, Square Cut, Grooved, Screwed, Vibrator Grinding, Coupling, Plain end (PE), Threaded Ends (Male & Female), Deburring, Chamfering, Buttweld, Pub Joints |
| Certificate | IBR, NACE, EN-10204:3.1, EN-10204:3.2, SSC, Sour-Service, HIC, |
| X46 Carbon Steel Pipe Length | DRL, SRL, 20FT, 40FT, Single Random Length (SRL), Double Random Length (DRL), and Fixed Length 5.8 Meter, 12.0 Meters (40FT), 6.0 Meters (20FT), 11.8 Meters, |
| C | Mn | P | V | Nb | Ti | |
| maxb | maxb | max. | max. | max. | max. | max. |
| 0.28 | 1.20 | 0.030 | 0.030 | c,d | c,d | d |
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 245(35 500) | 415(60 200) | 28% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NB | DN | OD (inches) | API 5L X46 Pipe Schedule | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH 5 | SCH 10 | SCH 20 | SCH 30 | SCH 40 | SCH 60 | SCH 80 | SCH 100 | SCH 120 | SCH 160 | ||||
| 3/4″ | 20 | 1.05 | 0.065 | 0.11 | x | 0.095 | 0.113 | x | x | 0.17 | x | 0.219 | |
| 1″ | 25 | 1.315 | 0.065 | 0.11 | x | 0.114 | 0.133 | x | x | 0.2 | x | 0.25 | |
| 1.1/2″ | 40 | 1.9 | 0.065 | 0.11 | x | 0.125 | 0.145 | x | x | 0.225 | x | 0.281 | |
| 2″ | 50 | 2.375 | 0.065 | 0.12 | x | x | 0.154 | x | x | 0.25 | x | 0.344 | |
| 2.1/2″ | 65 | 2.875 | 0.083 | 0.12 | x | x | 0.203 | x | x | 0.3 | x | 0.375 | |
| 3″ | 80 | 3.5 | 0.083 | 0.12 | x | x | 0.216 | x | x | 0.35 | x | 0.438 | |
| 4″ | 100 | 4.5 | 0.083 | 0.12 | x | x | 0.237 | x | x | 0.437 | x | 0.531 | |
| 5″ | 125 | 5.563 | 0.109 | 0.12 | x | x | 0.258 | x | x | 0.5 | x | 0.625 | |
| 6″ | 150 | 6.625 | 0.109 | 0.13 | x | x | 0.28 | x | x | 0.562 | x | 0.719 | |
| 8″ | 200 | 8.625 | 0.109 | 0.15 | 0.25 | 0.277 | 0.322 | 0.406 | 0.593 | 0.718 | 0.812 | 0.906 | |
| 10″ | 250 | 10.75 | 0.134 | 0.17 | 0.25 | 0.307 | 0.365 | 0.5 | 0.718 | 0.843 | 1.0 | 1.125 | |
| 12″ | 300 | 12.75 | 0.165 | 0.18 | 0.25 | 0.33 | 0.406 | 0.5 | 0.843 | 1.0 | 1.125 | 1.312 | |
Yoane Steel is a leading supplier of high-quality Carbon Steel API X46 5L PSL 1 Pipes products in Kinshasa, Congo. We focus on steel solutions and offer a variety of products. This includes Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our products are Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. We are known for our good delivery and excellent customer care. We aim to provide strong and durable steel materials for many industrial uses. We work hard to meet high standards, making us a trusted partner for your steel needs.
The primary use for these API X46 pipes is in the construction of efficient and safe fluid transportation systems, particularly for gathering crude oil and natural gas from wellheads. Their robust construction also makes them an ideal choice for distributing water in municipal projects or for industrial plants requiring reliable process lines. Whether for a major energy corridor or essential local infrastructure, these pipes provide the dependable backbone for systems that power communities and drive economic activity, ensuring the secure flow of critical resources over long distances.
Yoane Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Kinshasa, Congo.
