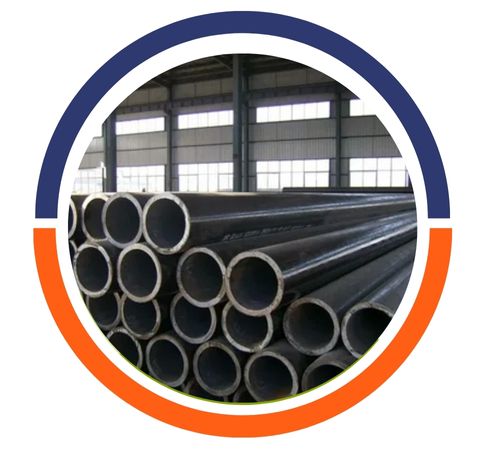

Yoane Steel stands as a trusted partner for industrial development in Kinshasa, providing essential materials that fuel progress across the Congo. We specialize in supplying high-grade Carbon Steel API X46 5L PSL 2 Pipes, engineered for challenging environments and long-term reliability. Our commitment goes beyond just delivery; we offer expertise and support, ensuring that our clients receive solutions that are perfectly matched to their specific project needs. When you work with Yoane Steel, you are choosing a local supplier dedicated to quality and the success of your vital infrastructure and energy ventures.
The API X46 5L PSL 2 grade is defined by a careful balance of chemical composition and mechanical strength. It primarily consists of iron with controlled additions of carbon, manganese, and other elements that contribute to its durability. This specific blend results in a pipe with a minimum yield strength of 46,000 psi, offering excellent resistance to internal pressures and external stresses. This combination ensures consistent performance, making it a dependable choice for pipelines that require a material capable of handling demanding operational conditions without compromising on safety.
| Grade of material | X46 / L320 (N, M, Q, R) |
| API 5L Gr X46 ERW and HFW | 1/2” NB – 24” NB |
| X46 LSAW / DSAW | 16’OD TO 54″ OD (8 MM TO 50 MM THK) |
| Standard | ISO 3183 L320/ API 5L X46 |
| API 5L X46 Seamless Pipe (OD) | 21.3 – 660mm ( Inch 1/2” – 26”) |
| PSL Level | |
| X46 Steel SAW | 16″ – 100″ NB |
| Surface Treatment | Pickling Galvanising Forging Capping Pre turning Powder Coating Degreasing Washing Copper Plating Cementing Chromium – Plating Brushing Nickle – Plating Roller Polishing Grinding Honing Shot Blasting Skiving PE Covering Roller Burnishing |
| Manufacturing process | Welded, Extrusion, Submerged Arc Welded (SAW), Seamless, Electro Fusion Seam Welded (EFSW), Longitudinally Submerged Arc Welded (LSAW), Cold Drawn Seamless (CDS), Hot Finish Seamless (HFS), Horizontal Submerged Arc Welded (HSAW), Electric Resistance Welded (ERW) |
| API 5L X46 PSL2 Pipe end | Squared Ends, Thread Cutting, Socket, Flanged Ends, Beveled End (BE), Cut Grooves, Square Cut, Grooved, Screwed, Vibrator Grinding, Coupling, Plain end (PE), Threaded Ends (Male & Female), Deburring, Chamfering, Buttweld, Pub Joints |
| Certificate | IBR, NACE, EN-10204:3.1, EN-10204:3.2, SSC, Sour-Service, HIC, |
| X46 Carbon Steel Pipe Length | DRL, SRL, 20FT, 40FT, Single Random Length (SRL), Double Random Length (DRL), and Fixed Length 5.8 Meter, 12.0 Meters (40FT), 6.0 Meters (20FT), 11.8 Meters, |
| Mass fraction, based upon heat and product analysis % maximum | CARBON EQUIVALENT a | ||||||||||
| % MAXIMUM | |||||||||||
| Cb | Si | Mnb | P | S | V | Nb | Ti | Other | CEIIW | CEPcm | |
| L320N or X46N | 0.24 | 0.4 | 1.2 | 0.025 | 0.015 | 0.07 | 0.05 | 0.04 | e | 0.43 | 0.25 |
| L320Q or X46Q | 0.18 | 0.45 | 1.4 | 0.025 | 0.015 | 0.05 | 0.05 | 0.04 | e | 0.43 | 0.25 |
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 320 (46 400) | 435 (63 100) | F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NB | DN | OD (inches) | API 5L X46 Pipe Schedule | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH 5 | SCH 10 | SCH 20 | SCH 30 | SCH 40 | SCH 60 | SCH 80 | SCH 100 | SCH 120 | SCH 160 | ||||
| 3/4″ | 20 | 1.05 | 0.065 | 0.11 | x | 0.095 | 0.113 | x | x | 0.17 | x | 0.219 | |
| 1″ | 25 | 1.315 | 0.065 | 0.11 | x | 0.114 | 0.133 | x | x | 0.2 | x | 0.25 | |
| 1.1/2″ | 40 | 1.9 | 0.065 | 0.11 | x | 0.125 | 0.145 | x | x | 0.225 | x | 0.281 | |
| 2″ | 50 | 2.375 | 0.065 | 0.12 | x | x | 0.154 | x | x | 0.25 | x | 0.344 | |
| 2.1/2″ | 65 | 2.875 | 0.083 | 0.12 | x | x | 0.203 | x | x | 0.3 | x | 0.375 | |
| 3″ | 80 | 3.5 | 0.083 | 0.12 | x | x | 0.216 | x | x | 0.35 | x | 0.438 | |
| 4″ | 100 | 4.5 | 0.083 | 0.12 | x | x | 0.237 | x | x | 0.437 | x | 0.531 | |
| 5″ | 125 | 5.563 | 0.109 | 0.12 | x | x | 0.258 | x | x | 0.5 | x | 0.625 | |
| 6″ | 150 | 6.625 | 0.109 | 0.13 | x | x | 0.28 | x | x | 0.562 | x | 0.719 | |
| 8″ | 200 | 8.625 | 0.109 | 0.15 | 0.25 | 0.277 | 0.322 | 0.406 | 0.593 | 0.718 | 0.812 | 0.906 | |
| 10″ | 250 | 10.75 | 0.134 | 0.17 | 0.25 | 0.307 | 0.365 | 0.5 | 0.718 | 0.843 | 1.0 | 1.125 | |
| 12″ | 300 | 12.75 | 0.165 | 0.18 | 0.25 | 0.33 | 0.406 | 0.5 | 0.843 | 1.0 | 1.125 | 1.312 | |
Yoane Steel is a leading supplier of high-quality Carbon Steel API X46 5L PSL 2 Pipes products in Kinshasa, Congo. We focus on steel solutions and offer a variety of products. This includes Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our products are Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. We are known for our good delivery and excellent customer care. We aim to provide strong and durable steel materials for many industrial uses. We work hard to meet high standards, making us a trusted partner for your steel needs.
These pipes are fundamental to the safe and efficient transportation of vital resources. You will find them forming the backbone of onshore and gathering pipelines, moving natural gas and crude oil over long distances. Their robust construction also makes them suitable for high-pressure water systems and various industrial process lines within power generation and large-scale manufacturing plants. Essentially, anywhere a reliable and strong conduit is required for demanding fluids, the API X46 5L PSL 2 pipe provides a proven and trusted solution for critical infrastructure.
Yoane Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Kinshasa, Congo.
