Based in the vibrant industrial landscape of Kinshasa, Yoane Steel has established itself as a trusted partner for quality materials, particularly for those demanding reliable solutions. We take pride in supplying the robust Carbon Steel DIN 2440 Pipe, a product engineered to meet exacting German standards for consistency and performance. Our commitment ensures that businesses across Congo and beyond have access to materials that form the strong, dependable backbone of critical projects, backed by our local expertise and dedication to customer support.

CS DIN 2440 Pipes Exporter in Congo, Carbon Steel DIN 2440 Pipe Price List in Kinshasa, Carbon Steel DIN 2440 Pipes Supplier in Kisangani, Carbon Steel DIN 2440 Pipe Exporter in Lubumbashi, Carbon Steel DIN 2440 Pipes Exporter in Bukavu, CS DIN 2440 Pipes Size Chart, Carbon Steel DIN 2440 Pipe Price in Mbuji-Mayi, Carbon Steel DIN 2440 Pipes Weight Chart, CS DIN 2440 Pipes Thickness, Carbon Steel DIN 2440 Pipe Supplier in Congo, Carbon Steel DIN 2440 Pipes Stockist in Kisangani

Carbon Steel DIN 2440 Seamless Pipes

Carbon Steel DIN 2440 Welded Pipes

Carbon Steel DIN 2440 EFW Pipes

What is Carbon Steel DIN 2440 Pipe?

The strength of the DIN 2440 pipe comes from its carefully balanced composition, primarily iron and carbon, which gives it a solid foundation. This material is further defined by its impressive mechanical properties, offering excellent tensile strength to handle significant internal pressures and good ductility, allowing for necessary fabrication without compromising its integrity. This reliable combination ensures the pipe can withstand both the demands of heavy loads and the rigors of installation, making it a consistently dependable choice for engineers.

Carbon Steel DIN 2440 Pipe Exporter in Congo, Carbon Steel DIN 2440 Pipe Price List in Kinshasa, CS DIN 2440 Pipes Supplier in Kisangani, Carbon Steel DIN 2440 Pipes Exporter in Lubumbashi, Carbon Steel DIN 2440 Pipe Exporter in Bukavu, Carbon Steel DIN 2440 Pipe Size Chart, Carbon Steel DIN 2440 Pipes Price in Mbuji-Mayi, Carbon Steel DIN 2440 Pipe Weight Chart, Carbon Steel DIN 2440 Pipe Thickness, CS DIN 2440 Pipes Supplier in Congo, Carbon Steel DIN 2440 Pipes Stockist in Kisangani

Carbon Steel DIN 2440 Pipe Chemical Composition

Steel Grade	C	Si	Mn	Cr	Ni	Mo
St 33	It is not normalized

Carbon Steel DIN 2440 Pipe Mechanical Properties

Steel Grade	Tensile Strength,N/mm2(min)	Yield Strength,N/mm2(min)	Elongation, % (min)
St 33.2	290 – 310	185	18

DIN 2440 Steel Pipes Sizes

DIN 2440
	DN	Zoll	d	s	kg/m
					schwarz	verzinkt
	8	1/4	13.5	2.35	0.65	0.68
	10	3/8	17.2	2.35	0.85	0.89
	15	1/2	21.3	2.65	1.22	1.27
	20	3/4	26.9	2.65	1.58	1.65
	25	1	33.7	3.25	2.44	2.55
	32	1 1/4	42.4	3.25	3.14	3.28
	40	1 1/2	48.3	3.25	3.61	3.77
	50	2	60.3	3.65	5.10	5.33
	65	21/2	76.1	3.65	6.51	6.80
	80	3	88.9	4.05	8.47	8.85
	100	4	114.3	4.5	12.10	12.64

If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Top Manufacturer and Supplier of Carbon Steel DIN 2440 Pipe in Kinshasa, Congo

Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel DIN 2440 Pipe products in Kinshasa, Congo. Specializing in premium steel materials, we offer an extensive range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our diverse selection includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a commitment to dependable delivery and exceptional customer service, Jaxon Steel ensures the supply of superior materials that provide outstanding performance across various industrial applications. Trust Jaxon Steel for all your Carbon Steel DIN 2440 Pipe requirements.

Dimension Standard of DIN 2440 Pipes

Nominall Width>	Conn- ecting nomin- al width of the flttings according to DIN 2950 and DIN 2980	Whit- worth- pipe threads according to DIN 2999 Part1	Tube				Screw thread					Corresponding socket according to DIN 2986
			Outside diameterd1	Wall thick- nesss	Weight		Theo- retical screw thread diameter d2	Threads per 25.4mm	Usable screw thread length J min at a max.	Distance of screw thread dlameter d2 from tube end		Outside diameter	Length
			Outside diameterd1	Wall thick- nesss	Plain-end tube kg/m	socketed tubekg/m	Theo- retical screw thread diameter d2	Threads per 25.4mm	Usable screw thread length J min at a max.	a max.	a min.	min.	min.
6	1/8	R 1/8	10.2	2.0	0.407	0.410	9.728	28	7.4	4.9	3.1	14	17
8	1/4	R 1/4	13.5	2.35	0.650	0.654	13.157	19	11.0	7.3	4.7	15.4	25
10	3/8	R 3/8	17.2	2.65	0.852	0.858	16.662	19	11.4	7.7	5.1	21.3	26
15	1/2	R 1/2	21.3	2.65	1.22	1.23	20.955	14	15.0	10.0	6.4	26.4	34
20	3/4	R 3/5	26.9	2.65	1.58	1.59	26.441	14	16.3	11.3	7.7	31.8	36
25	1	R 1	33.7	3.25	2.44	2.46	33.249	11	19.1	12.7	8.1	39.5	43
32	1 1/4	R 1 1/4	42.4	3.25	3.14	3.17	41.910	11	21.4	15.0	10.4	48.3	48
40	1 1/2	R 1 1/2	48.3	3.25	3.61	3.64	47.803	11	21.4	15.0	10.4	54.5	48
50	2	R 2	60.3	3.65	5.10	5.17	59.614	11	25.7	18.2	13.6	66.3	56
65	2 1/2	R 2 1/2	76.1	3.65	6.51	6.63	75.184	11	30.2	21.0	14.0	82	65
80	3	R 3	88.9	4.05	8.47	8.64	87.884	11	33.3	241	17.1	95	71
100	4	R4	114.3	4.5	12.1	12.4	113.030	11	39.3	28.9	21.9	122	83
125	5	R 5	139.7	4.85	16.2	16.2	138.430	11	43.6	32.1	25.1	147	92
150	6	R 6	165.1	4.85	19.2	19.8	163.830	11	43.6	32.1	25.1	174	92
1) Referred to an average length of 6m

Carbon Steel DIN 2440 Pipe Supplier in Kinshasa, Carbon Steel DIN 2440 Pipes Exporter in Kisangani, CS DIN 2440 Pipes Sizes in mm, Carbon Steel DIN 2440 Pipes Manufacturer in Lubumbashi, Carbon Steel DIN 2440 Pipes Price List in Congo, CS DIN 2440 Pipes Distributor in Bukavu, Carbon Steel DIN 2440 Pipes in Mbuji-Mayi, Carbon Steel DIN 2440 Pipe Supplier in Lubumbashi, Carbon Steel DIN 2440 Pipe Distributor in Congo

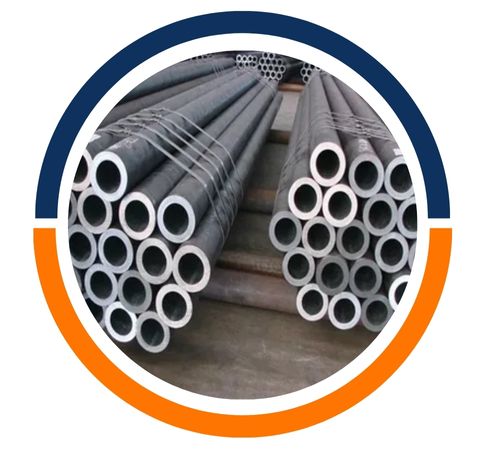

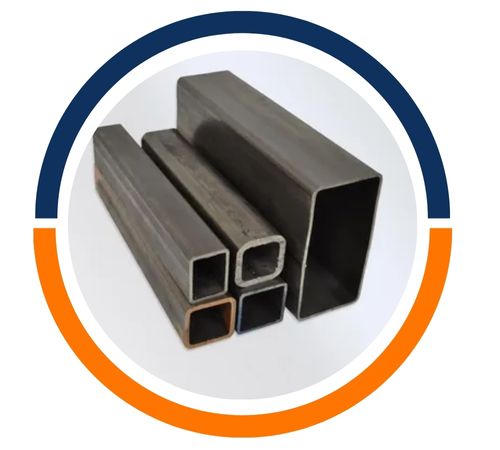

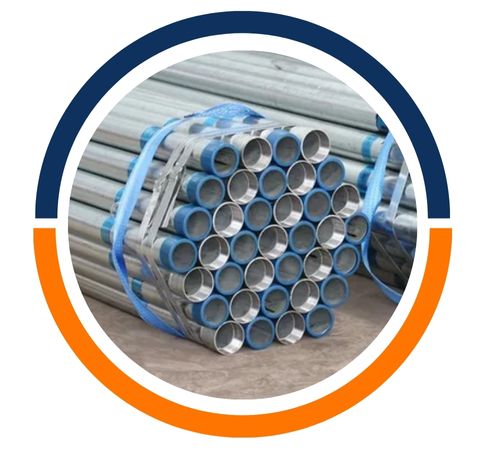

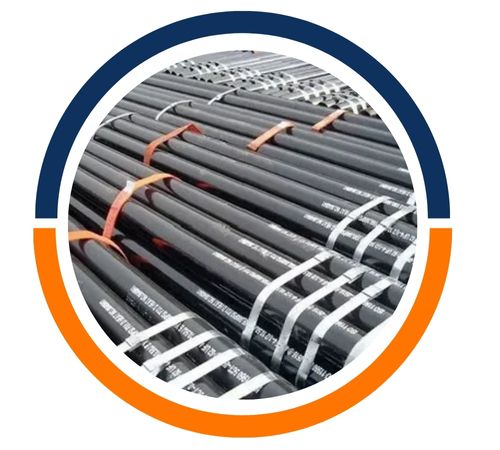

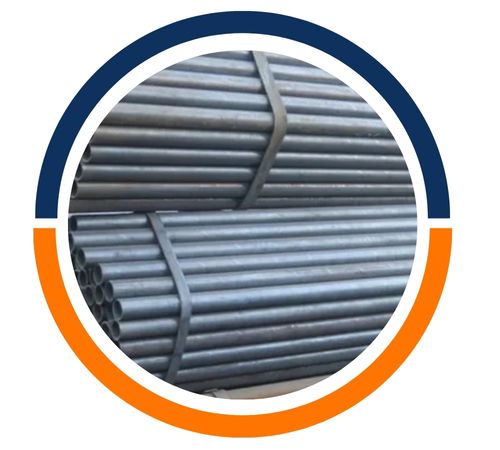

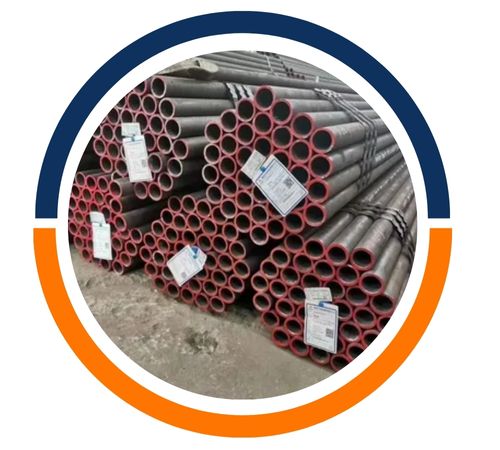

Types of Carbon Steel DIN 2440 Pipe

Carbon Steel DIN 2440 Pipe Supplier in Kinshasa, CS DIN 2440 Pipes Exporter in Kisangani, Carbon Steel DIN 2440 Pipe Manufacturer in Lubumbashi, Carbon Steel DIN 2440 Pipes Price List in Congo, Carbon Steel DIN 2440 Pipe Distributor in Bukavu, Carbon Steel DIN 2440 Pipe in Mbuji-Mayi, CS DIN 2440 Pipes Supplier in Lubumbashi, Carbon Steel DIN 2440 Pipes Distributor in Congo, Carbon Steel DIN 2440 Pipe Sizes in mm

Uses of Carbon Steel DIN 2440 Pipe

You’ll commonly find the DIN 2440 pipe playing a crucial role in constructing water supply networks and fire protection systems, where its pressure-handling capability is essential. It’s equally vital in the industrial sector for moving various process fluids and gases, and it serves as a fundamental component in structural frameworks and scaffolding. This versatility makes it a go-to material for plumbing, engineering, and construction professionals who need a pipe that delivers proven performance for both above-ground installations and concealed service lines, forming the hidden arteries of modern infrastructure.
